Optimate O-108 USB Charger with Battery Indicator Kit (includes Battery Lead) – 3300mA

Brand:Optimate

Type: Charger Kit

Description:

The sealed in-line battery to USB 3300mA charger with 200cm / 80″ of cable and O-31 battery lead, delivers safe and fast USB charging of any device mounted outside on the handlebar or inside your tank or pannier – Cable routes to where USB charging is needed!

• Supply cable (100cm / 40″) with M6 / 1/4″ rings fit all powersport battery terminals. – Fuse protected.
• Charges 1x USB device with up to 3300mA current available (or get optional O-110 USB splitter and charge 2 devices). –
• Charge current adapts to connected device for safe recharging.

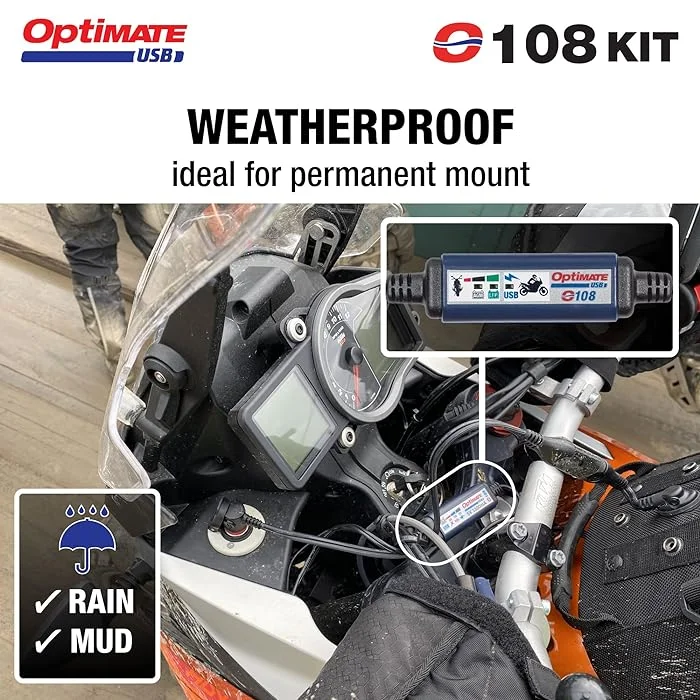

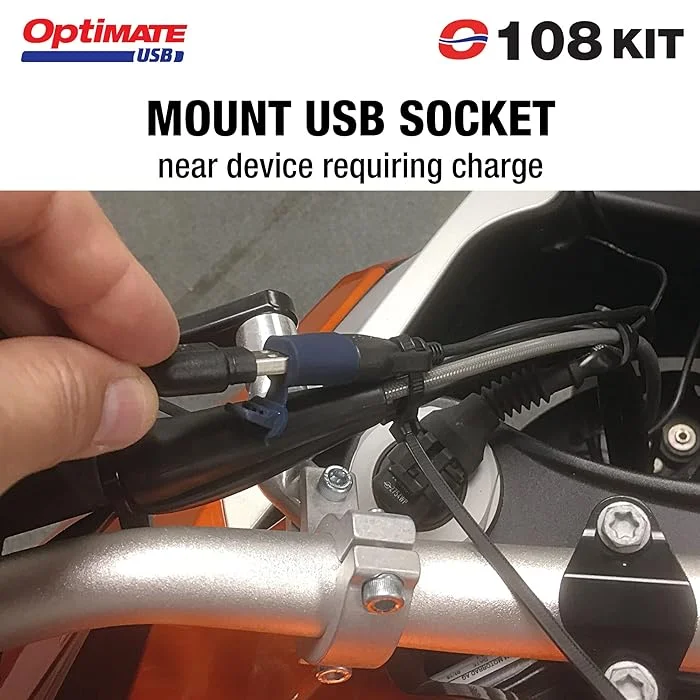

• Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable – Seals againt inserted USB cable for charging in any weather!

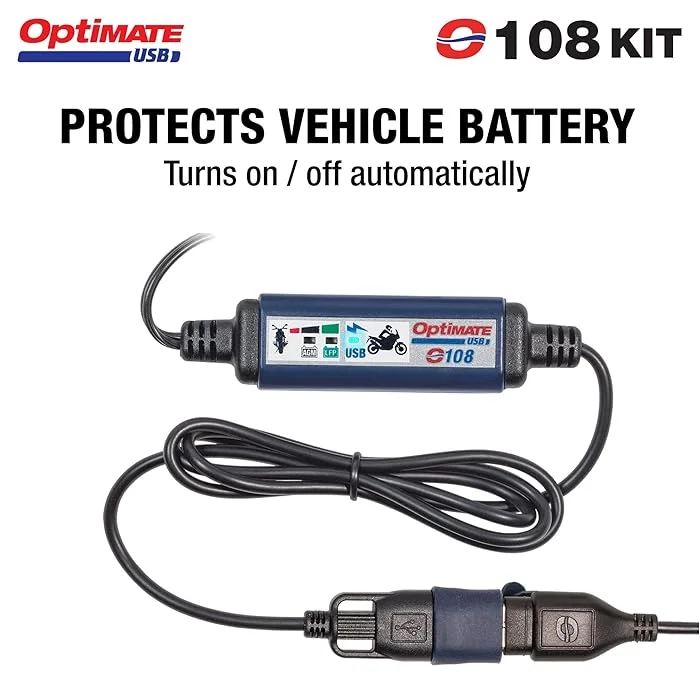

• Built in protection turns off USB charging & prevents your parked vehicle’s LFP (LiFePO4) or AGM (Pb)battery from draining – Starts back up when vehicle engine fires up.
• Monitors and displays parked vehicle’s battery status – Indicates battery is ‘start ready’ at the blink of an LED!

Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80″ / 200cm away from 12V supply.

LENGTH: 80″ / 200cm

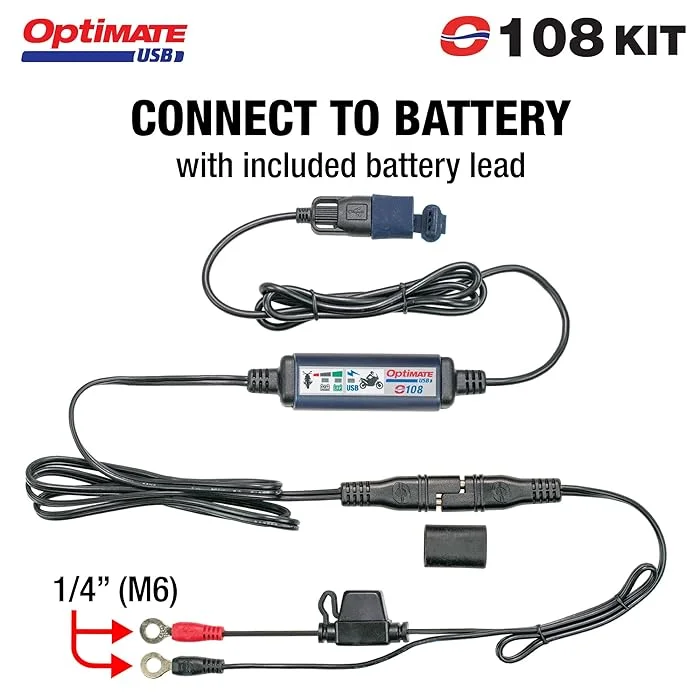

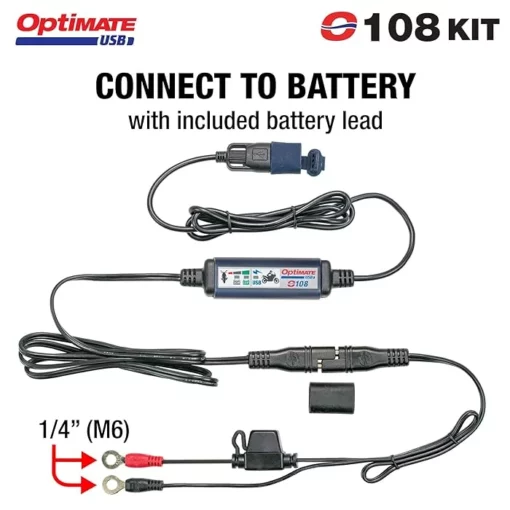

CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4”) rings / eyelets OR 2-pin SAE (if disconnected from O-31).

POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.

CHARGE CONNECTOR (OUTPUT): 1x USB

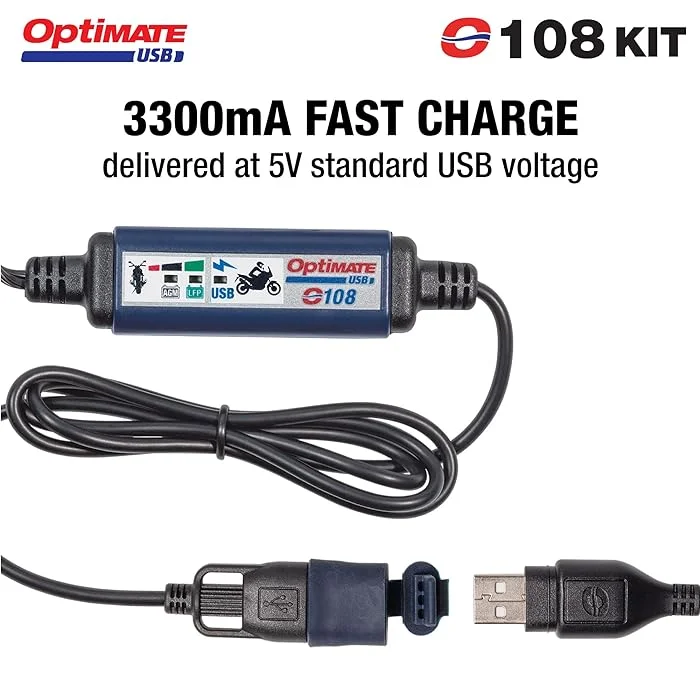

POWER (OUTPUT): 3300mA @ 5V

OPERATION:  fully automatic

• Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
• Turns on if vehicle battery voltage increases above 13.3V.
• 2 LED battery monitor
• Short circuit, overheat, over-voltage protection. O-31 battery lead includes in-line fuse.

OPERATION (Voltage):

• USB ON – 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
• USB 1 HOUR – 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.

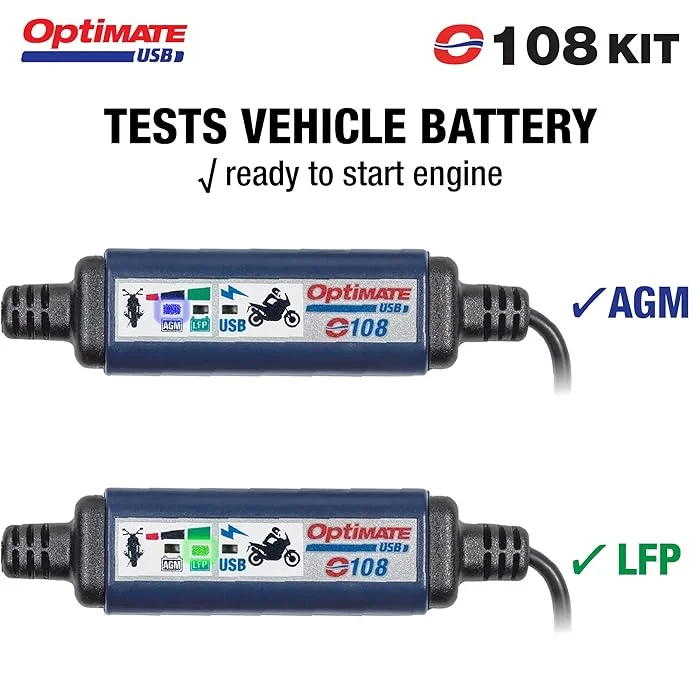

• AGM / LFP MONITOR – LED blink every 5 seconds if battery charge  ≥ 50% , sufficient to start vehicle engine.

• LED LFP: 13.1V to 13.3V.
• LED AGM: 12.4V to 13.1V.
• NO LED < 12.4V.

• OFF ≤ 9V

CABLE RATING:SPT-1

USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures

STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket ; use any USB cable, seals when inserted.

WARRANTY: 3-year limited replacement warranty

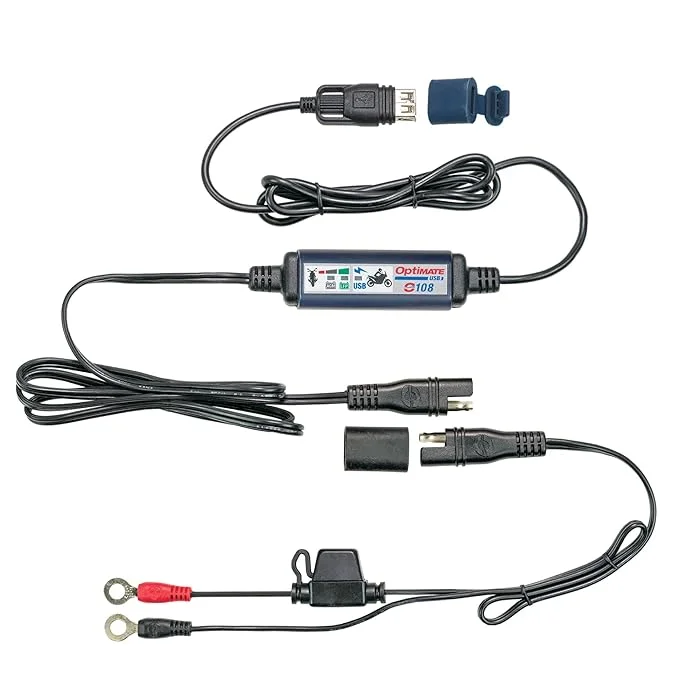

What’s in the box?

O-108 USB Charger with Battery Indicator
O-31 Battery Lead
