DENALI Universal Trigger Wizard for Ground Switched Highbeams
Rs.1,900.00
The Trigger Wizard allows you to create a 12v high beam signal, enabling Denali lights to adjust intensity with your factory high beam switch. Enhance your riding experience with seamless control of your auxiliary lights while keeping the convenience of your bike’s original controls.
Available!
Brand:Denali
- Description
- Additional information
- Bike Compatibility
- Reviews (0)
- Shipping, Exchange/Returns & Warranty
DENALI Universal Trigger Wizard for Ground Switched Highbeams
Description:
The Denali Universal Trigger Wizard for Ground Switched Highbeams is a long-awaited and simple wiring adapter that converts a ground-switched vehicle high beam wire to a traditional high beam wire that outputs 12 volts when you turn on your high beam. This adapter is essential if you want to output a 12v high beam signal that will allow Denali lights to change intensity with your factory high beam switch.
Installation:

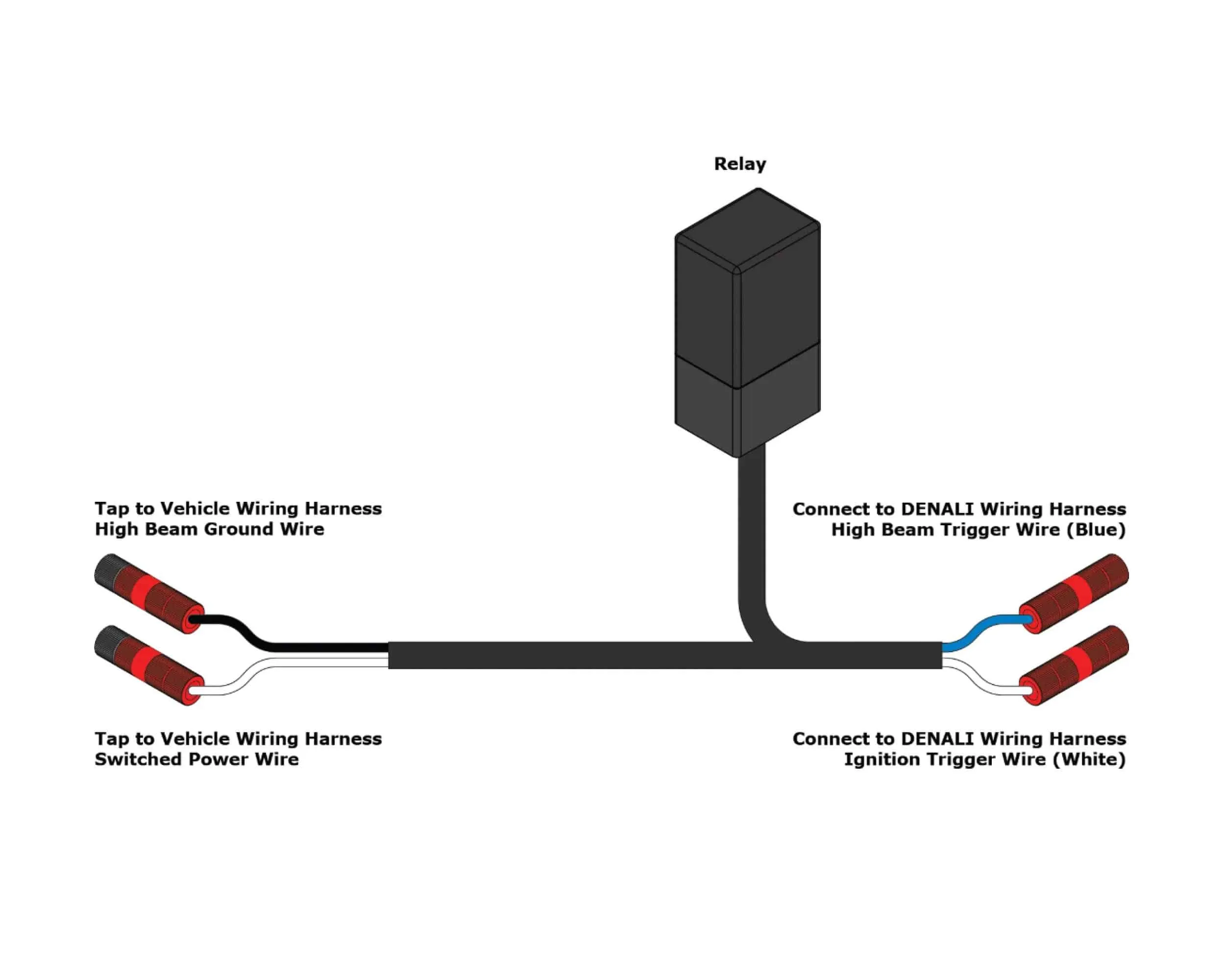

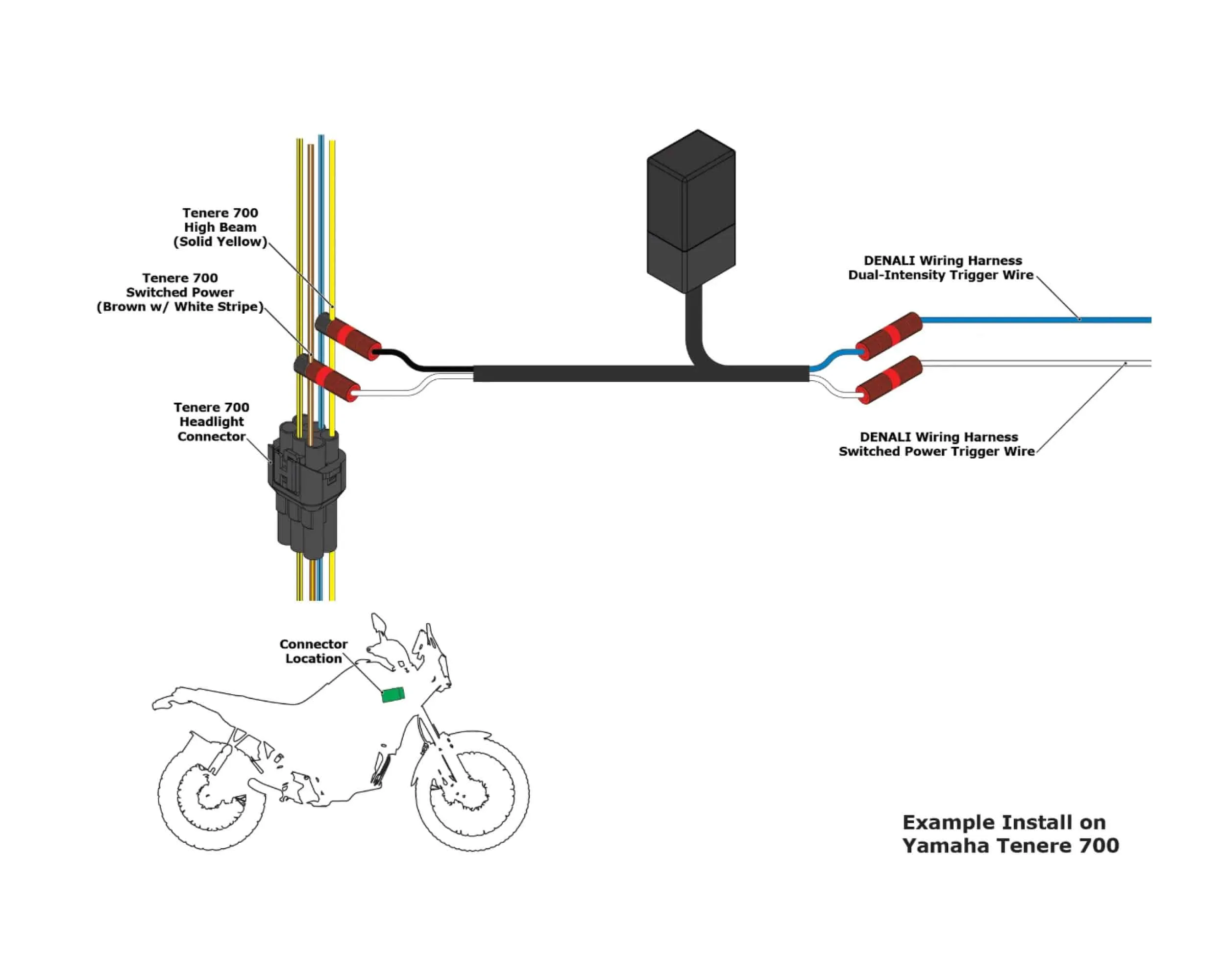

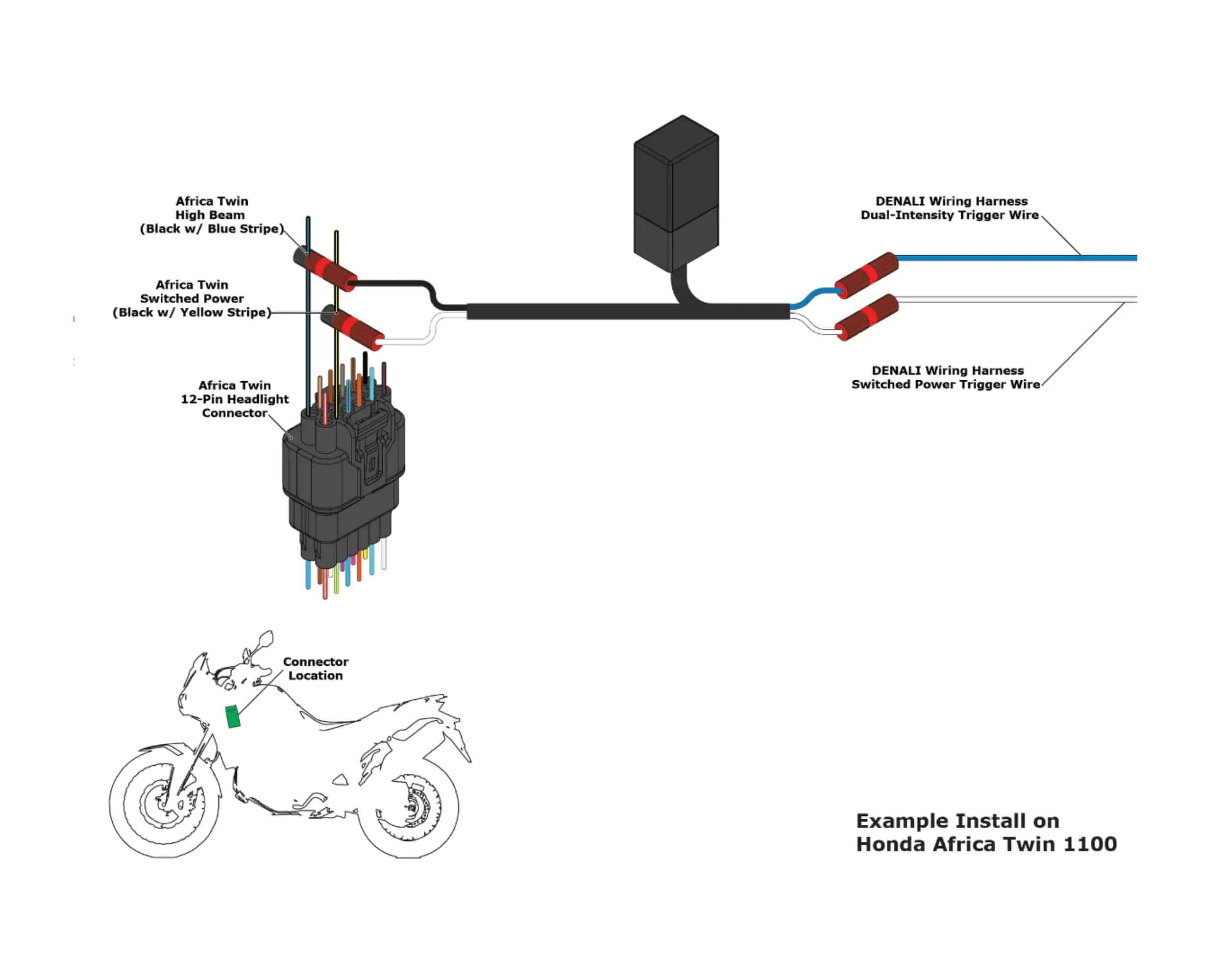

To install the Trigger Wizard, simply connect the white and blue ends to the color-coded Denali wiring harness trigger wires. Then, connect the black and white leads to the vehicle high beam and switched power wires respectively.
What is Ground Switching? How do I know if I need this?
Ground switching is a common configuration for LED vehicle headlight circuits, where the switch is on the ground side of the headlight circuit instead of the power side. To determine if your vehicle has ground switching, use a voltmeter to measure the voltage on the headlight high beam wire as you toggle the high beam switch on/off. Traditional “power side” switched high beam circuits will show 0 volts when the high beam is off and 12+ volts when the high beam is turned on.
Ground-switched high beam circuits do the opposite, where the wire will measure 12+ volts when the high beam is off and drop to below 1 volt when the high beam is turned on. Connecting the Trigger Wizard in-line between the Denali wiring harness and the ground-switched headlight circuit will flip the signal to properly activate the Denali dimming features. This adapter is compatible with all Denali DataDim driving light harnesses and the DialDim Lighting Controller.
Note: Not all LED headlights are ground switched, so please follow the instructions above to determine if your vehicle has a ground-switched high beam circuit.
Highlights:
- Trigger wizard
- Enables you to output a 12v high beam signal that allows Denali lights to change intensity with your factory high beam switch
What’s in the box?

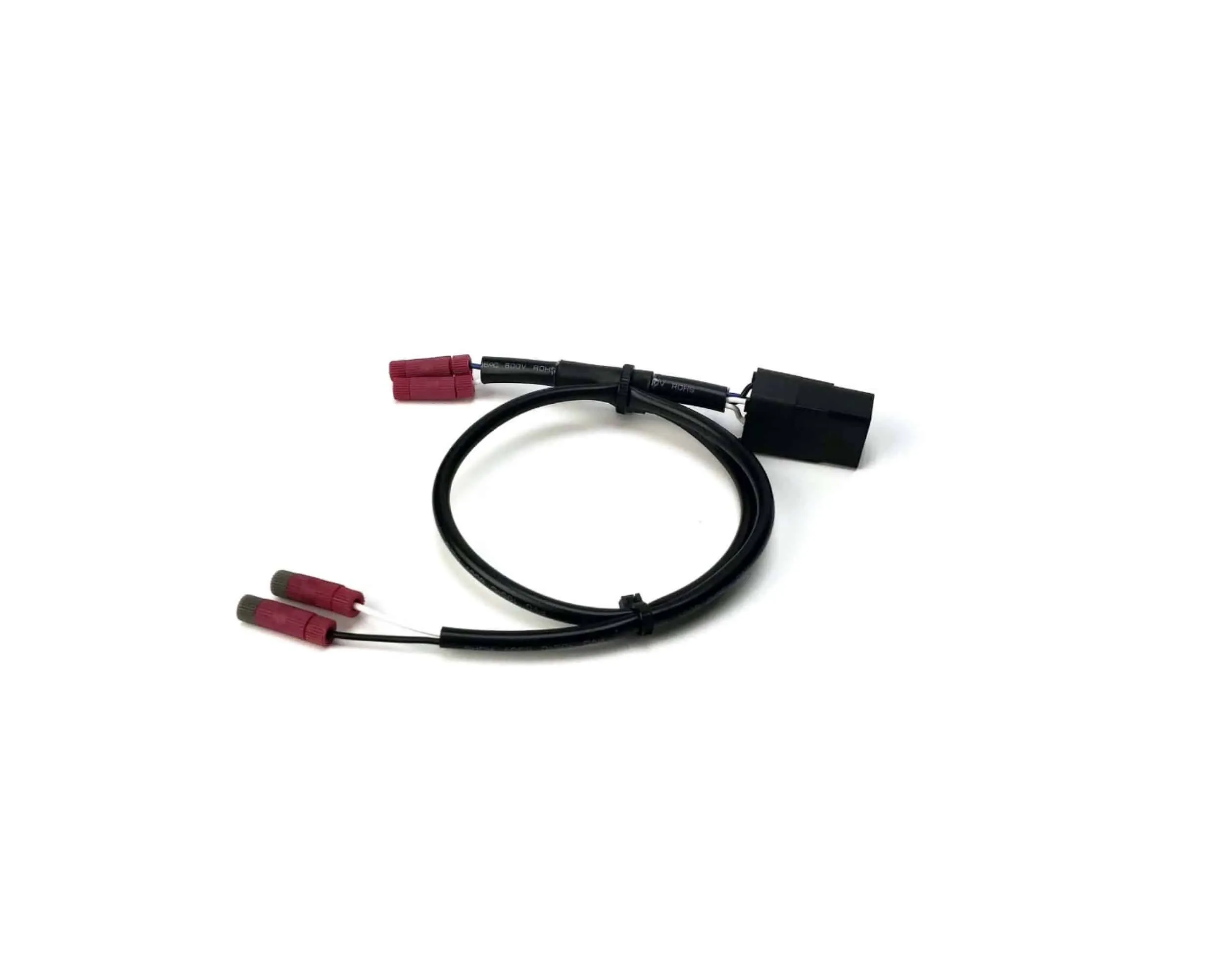

- DENALI Universal Trigger Wizard for Ground Switched Highbeams x 1 Kit
- Kit includes:
- Universal Trigger Wizard Harness x 1
- Pre-Installed Posi-Lock Connector x 2
- Pre-Installed Posi-Tap Connector x 2
| HSN code | 85369090 |
|---|---|
| OEM Part Number | DNL.WHS.20600 |
| Country of Origin | United States of America |
| Product Tags | |
| Warranty Coverage | Manufacturing defects |
| Warranty Coverage By | Manufacturer/Official Importer |
