Description:

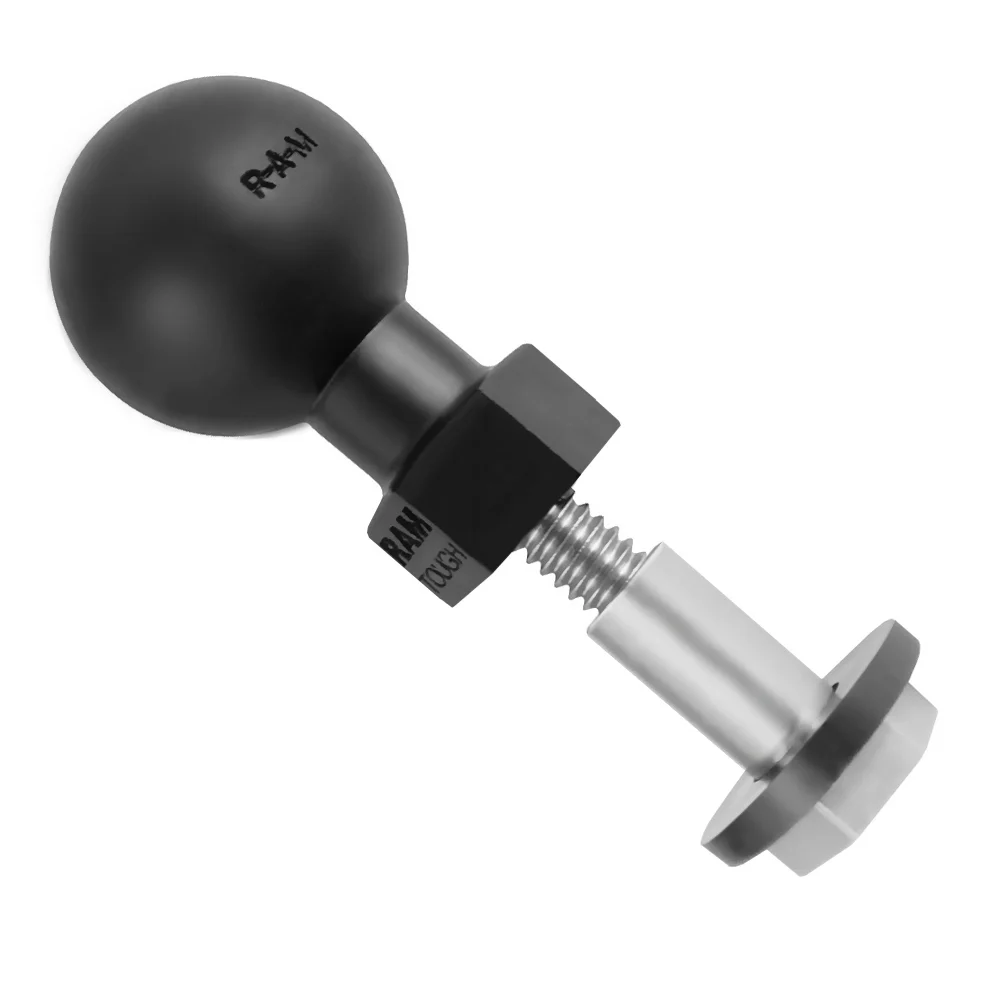

The RAP-B-379-HA1U is a versatile mounting component designed for various applications. It consists of a 1/4″-20 X 1″ threaded shaft connected to a 1″ diameter ball, a female blind barrel nut, and a nylon washer.
Hardware Included:
- (1) 1/4″-20 x .87″ Barrel Nut
- (1) .77″ Nylon Washer
Ball Size: B Size (1″)
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials: Crafted from high-strength composite with stainless steel threads for durability.
Packaging Type: Arrives in a poly bag for easy storage and protection.
Weight: Lightweight at just 0.1 lb.
Additional Information: For motorcycles equipped with a hydraulic clutch, it may be necessary to modify the included washer to ensure proper installation.
Installation Instructions:

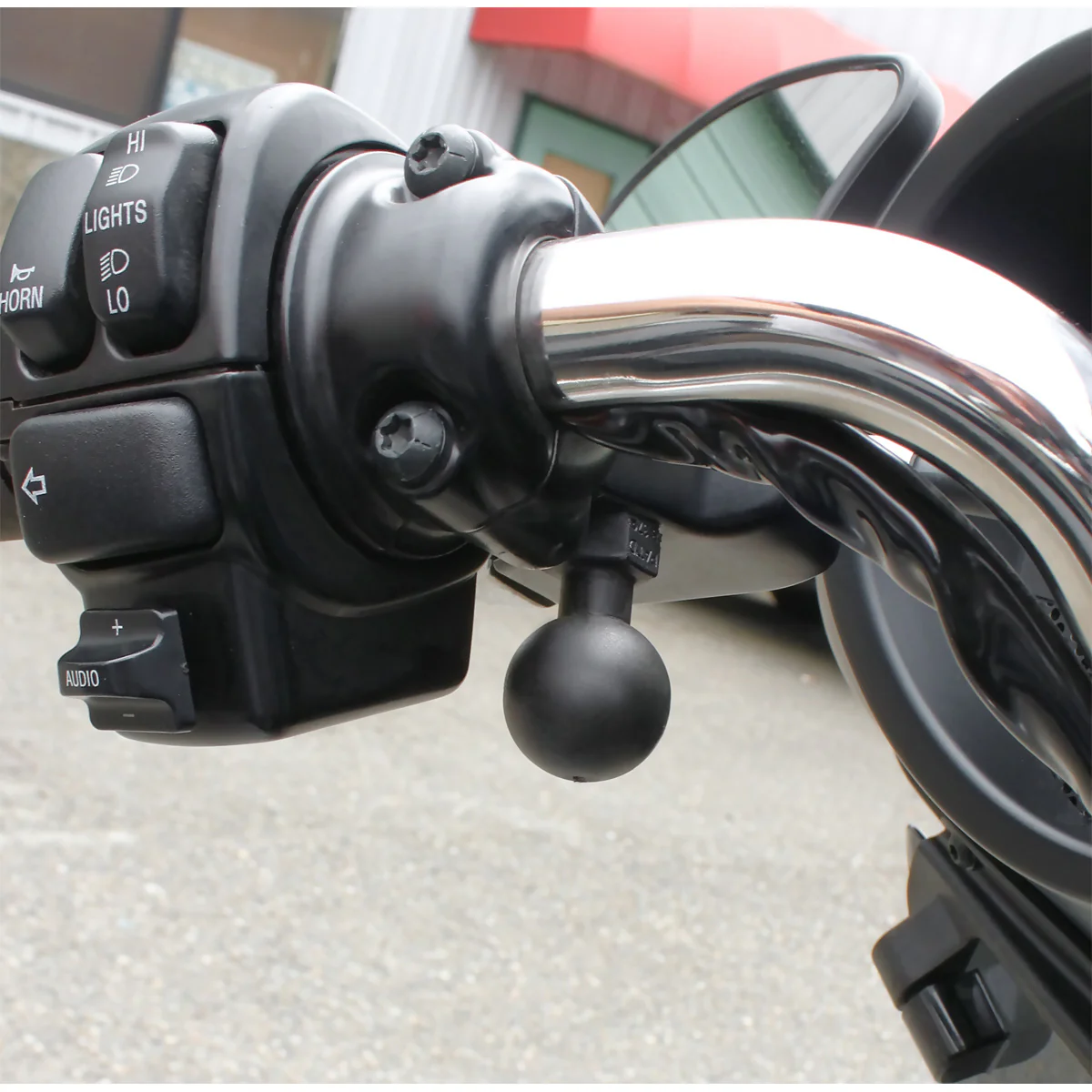

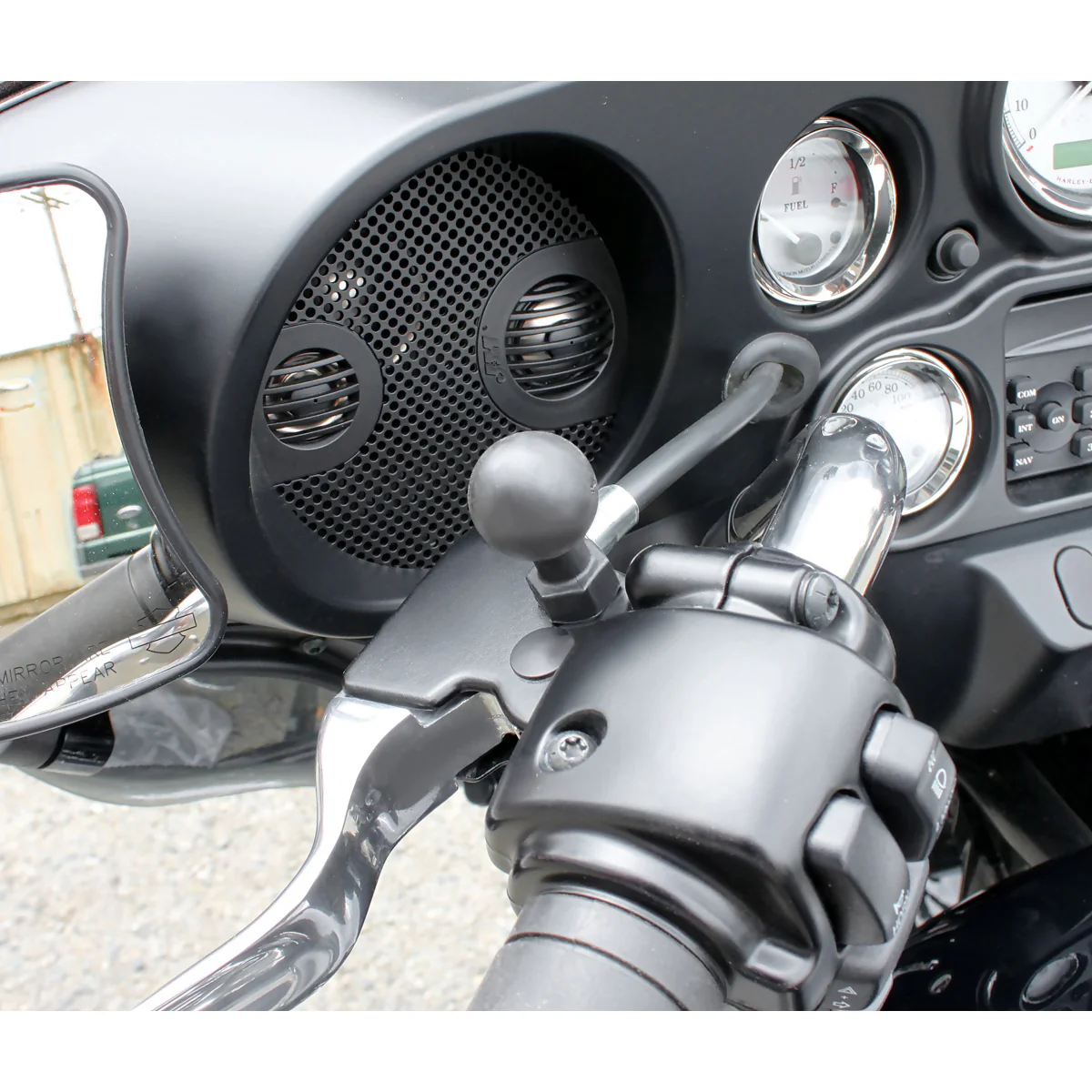

- Identify the mirror holes on your fairing.
- Place the nylon washer over the barrel nut and insert the barrel nut into the hole on the controls.
- From the opposite side of the hole, screw the threaded ball into the barrel nut. Tighten securely using a 5/8″ and 1/2″ wrench.
This component is designed to provide a secure and adaptable mounting solution for a variety of applications.
